Sheet Extrusion & Thermoforming Solutions
Complete extrusion and thermoforming systems for PET, PP, PS, PLA, decorative film and multi-layer packaging applications.
Sheet Extrusion Lines
Compare verified material ranges, sheet specifications and outputs for four SWT extrusion configurations.
PET/PLA Twin-Screw Non-Drying Sheet Production Line
For PET and PLA sheet production without a separate pre-crystallization and drying system.
- Material
- PET, PLA
- Thickness
- 0.15-1.6 mm
- Sheet Width
- Up to 800 mm
- Output
- 400-1300 kg/h
PETG/GAG Decorative Film Extrusion Line
For furniture decorative film, skin-texture film, high-gloss film, and solid-color film.
- Material
- PET, PLA, PP, PS, PC, PMMA, PE, ABS
- Thickness
- 0.15-1.6 mm
- Sheet Width
- Up to 800 mm
- Output
- 400-1500 kg/h
PP/PS Sheet Production Line
For PP and PS sheet used in food packaging, trays, containers, and stationery.
- Material
- PP, PS, PE
- Thickness
- 0.2-2.0 mm
- Sheet Width
- Up to 800 mm
- Output
- PP 450-600 kg/h; PS 550-700 kg/h
PP/PS Multi-Layer Co-Extrusion Sheet Production Line
For multi-layer barrier sheet used in food, pharmaceutical, and cosmetic packaging.
- Material
- PP, PE, PET, PS
- Thickness
- 0.5-2 mm
- Sheet Width
- 800, 1000, or 1200 mm
- Output
- 300, 400, or 650 kg/h
Thermoforming Machines
Automatic forming, punching, cutting and stacking for packaging and tray production.

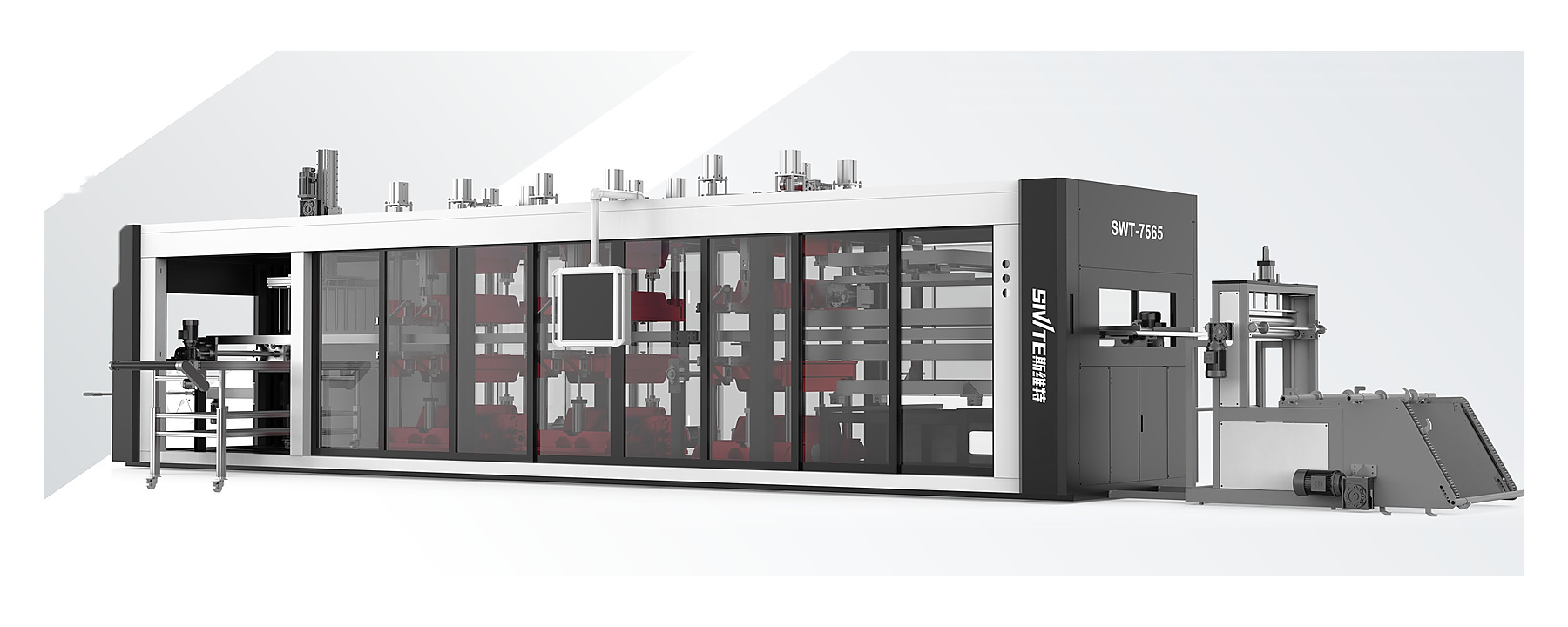

Three/Four-Station Positive and Negative Pressure Thermoforming Machine
For trays, food boxes, medical packaging, seedling trays, lids, and similar thermoformed products.
- Material
- PP, PS, HIPS, PET, PVC, PLA
- Sheet Thickness
- 0.16-2.0 mm
- Mold Size
- 750 x 850 mm or 750 x 650 mm
- Stations
- Three or four
- Maximum Speed
- Up to 40 cycles/min
How to Choose the Right Machine
Share these five production requirements so SWT can match the extrusion or thermoforming configuration to your project.
- Raw material
- Final product
- Sheet width
- Sheet thickness
- Required output
Not Sure Which Machine Fits Your Product?
Send us your material, sheet specification, output requirement and final product sample. Our engineers will recommend a suitable line.
