Sheet Extrusion Lines
Compare four configurations for PET/PLA, PETG/GAG, PP/PS and multi-layer sheet applications. Start with your material and finished-sheet requirements. Listed ranges are configuration references, not guaranteed outputs for every material or sheet size.

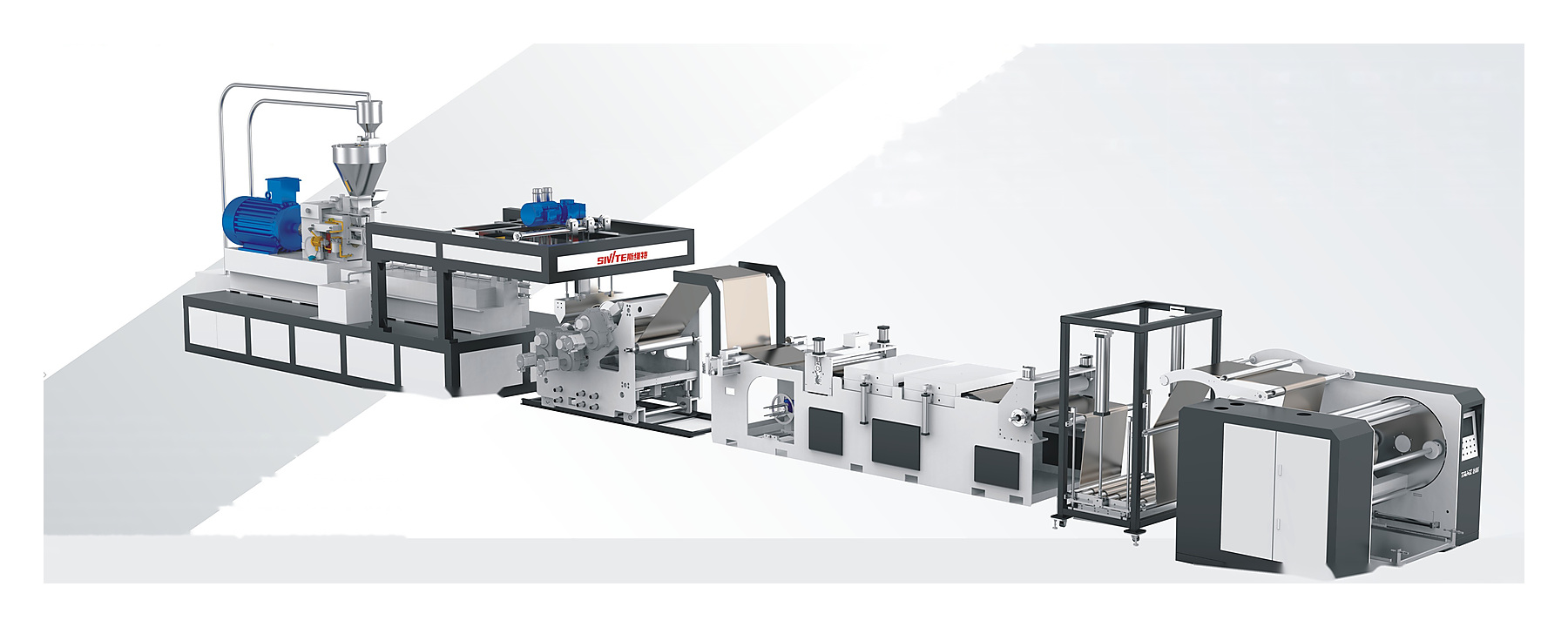

PET/PLA Twin-Screw Non-Drying Line
For PET and PLA sheet applications using a twin-screw, vented configuration. Discuss resin grade, regrind use and moisture-control requirements when selecting the screw and material-preparation arrangement.
- Thickness
- 0.15-1.6 mm
- Width
- Up to 800 mm
- Output
- 400-1300 kg/h

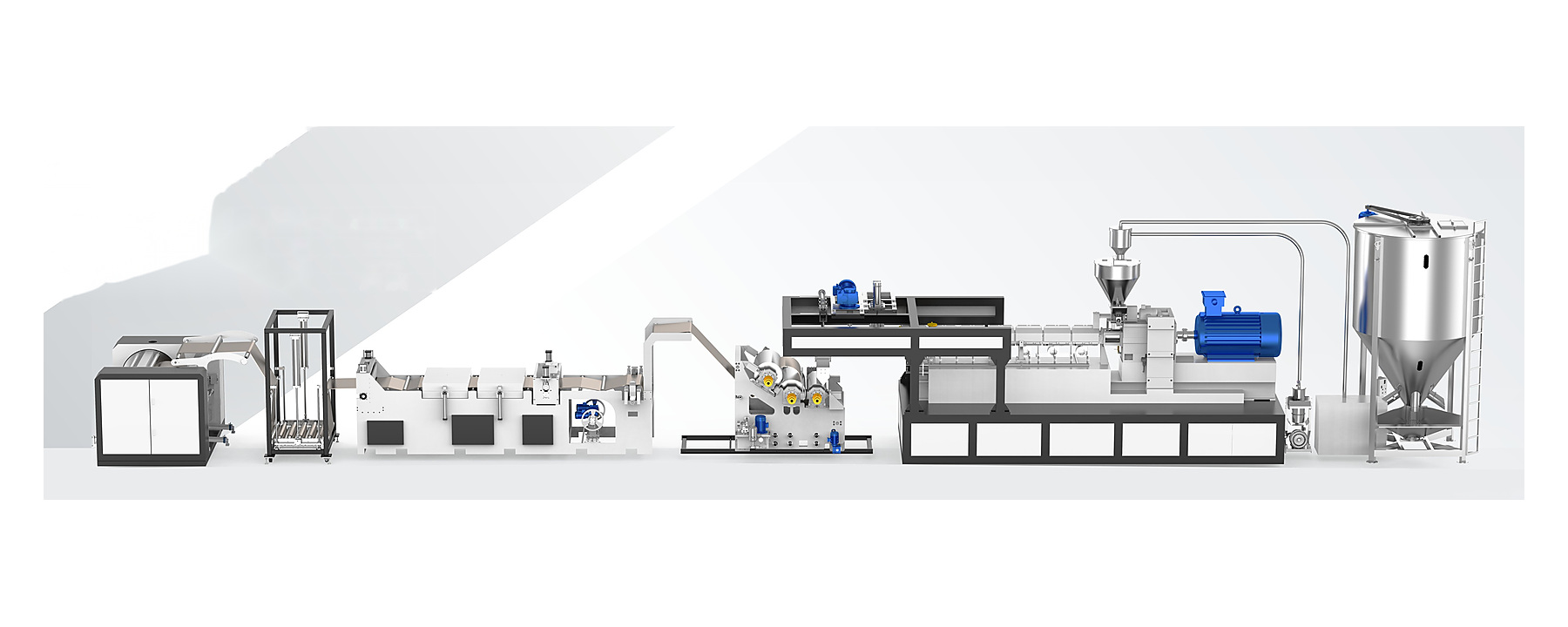

PETG/GAG Decorative Film Line
For PETG/GAG decorative sheet and film applications, including skin-texture, high-gloss and solid-color finishes. Confirm the required layer structure and material formulation before selecting a single-layer or co-extrusion arrangement.
- Thickness
- 0.15-1.6 mm
- Width
- Up to 800 mm
- Output
- 400-1500 kg/h

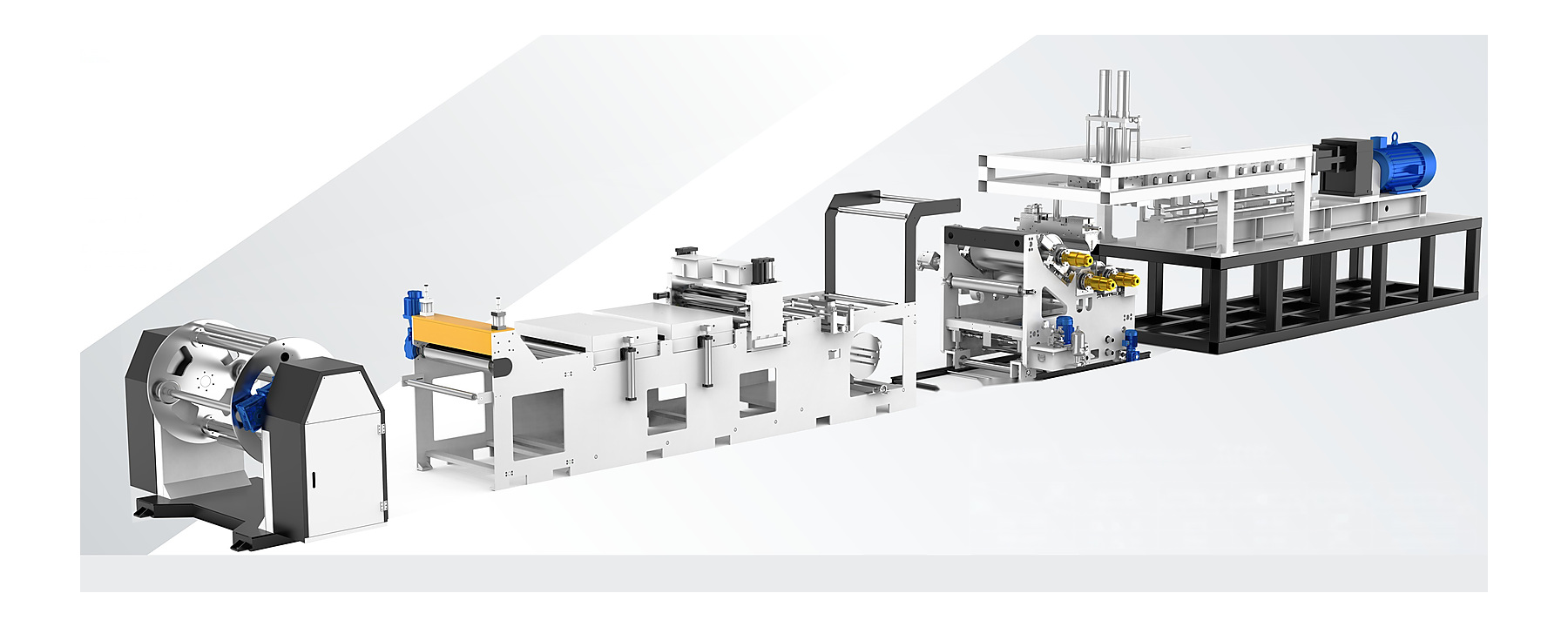

PP/PS Sheet Production Line
For PP or PS sheet used in packaging, trays, containers and stationery. Identify the resin grade, sheet dimensions and downstream forming requirements so the material-specific line configuration can be reviewed.
- Thickness
- 0.2-2.0 mm
- Width
- Up to 800 mm
- Output
- PP 450-600; PS 550-700 kg/h

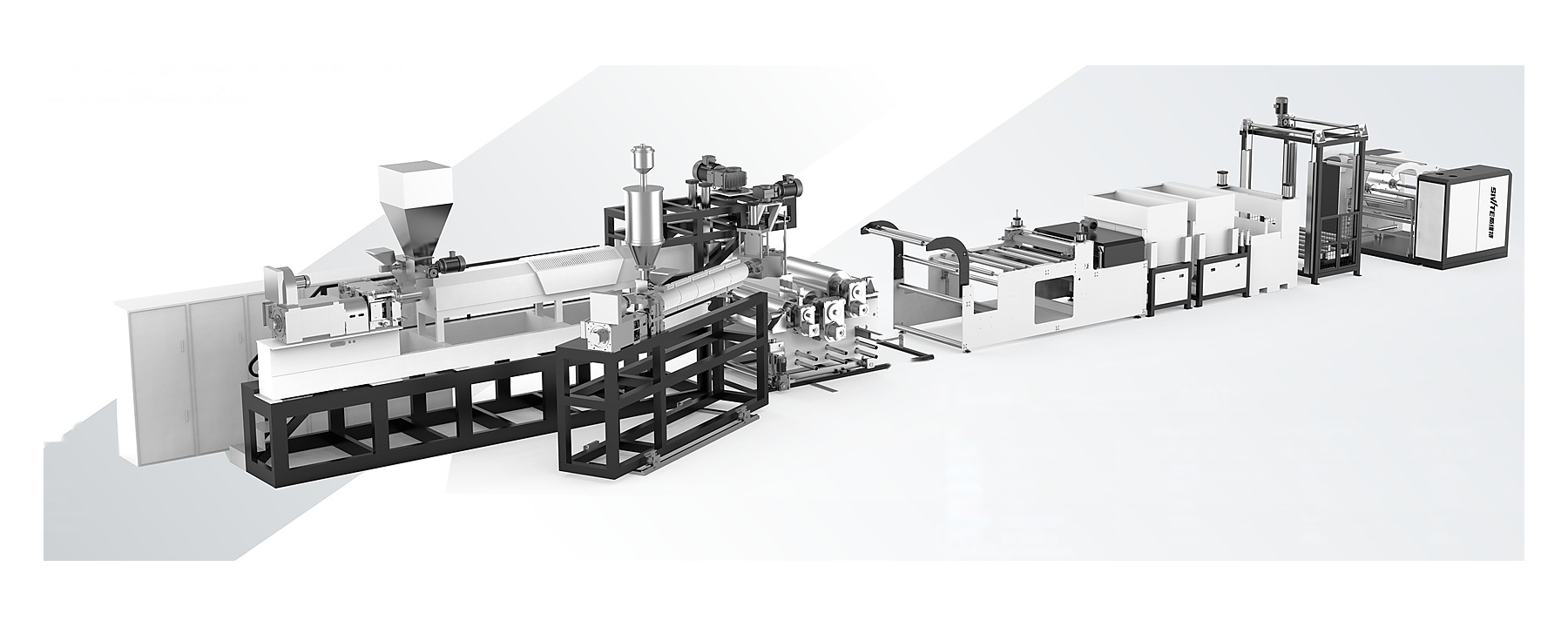

PP/PS Multi-Layer Co-Extrusion Line
For multi-layer sheet applications in food, pharmaceutical and cosmetic packaging. Define the materials and required layer structure first; any barrier requirement must be reviewed against the proposed material combination and configuration.
- Thickness
- 0.5-2 mm
- Width
- 800, 1000, or 1200 mm
- Output
- 300, 400, or 650 kg/h
Discuss Your Sheet Extrusion Requirements
For preliminary line selection, share your Material, Sheet Width and Sheet Thickness;
Target Output, Power Supply (voltage, phase and frequency) and Country.
Final configuration and output require confirmation for your material,
sheet dimensions and actual operating conditions.
Send these details through our Contact form or WhatsApp.
